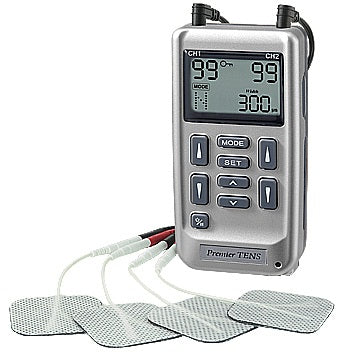

MECHANISM
|
TECHICAL DESCRIPTION
|
|
01
|
Channel
|
Dual, isolated between channels
|
|
02
|
Pulse Amplitude
|
Adjustable, 0-110 mA peak into 500 ohm load each channel.
|
|
03
|
Wave Form
|
Asymmetrical Bi-Phasic Square Pulse
|
|
04
|
Voltage
|
0 to 55V (Load: 500 ohm)
|
|
05
|
Power source
|
One 9 Volt Battery.
|
|
06
|
Size
|
11.8cm(L) x 6 cm(W) x 3.1cm(H)
|
|
07
|
Weight
|
157 grams with battery.
|
|
08
|
Pulse Rate
|
Adjustable, from 2 to 150 Hz, 1 Hz/step
|
|
09
|
Pulse Width
|
Adjustable, from 50 to 300 microseconds, 10 µs/step
|
|
10
|
Mode
|
Five TENS Modes: B(Burst), N(Normal),M (Modulation Rate & Width),S1( Modulation Width), S2 (Modulation Width)
|
|
11
|
Burst Mode
|
Burst rate: Adjustable, 0.5 ~ 5Hz
Pulse width adjustable, 50~300 µs
Frequency fixed = 100 Hz
|
|
12
|
Normal Mode
|
The pulse rate and pulse width are adjustable. It generates continuous stimulation based on the setting value.
|
|
13
|
Modulation Mode
|
Modulation mode is a combination of pulse rate and pulse width modulation. The pulse rate and width are automatically varied in a cycle pattern. The pulse width is decreased by 50% from its original setting in 0.5 second, then the pulse rate is decreased by 50% from its original setting in 0.5 second. Total cycle time is 1 second. In this mode, pulse rate(2-150Hz) and pulse width(50-300µs) are fully adjustable.
|
|
14
|
S1 Mode
|
Pulse width is automatically varied in a cyclic pattern over a nominal 10 second period. Pulse width decreases over a period of 4 seconds from the initial setting to a value 40% less.
The narrower pulse width continues for 1 second. It then increases over a period of 4 seconds to its initial setting. The cycle is then repeated. Pulse rate and pulse width are fully adjustable.
|
|
15
|
S2 Mode
|
Pulse width is automatically varied in a cyclic pattern over a nominal 10 second period. Pulse width decreases over a period of 4 seconds from the initial setting to a value 70% less.
The narrower pulse width continues for 1 second. It then increases over a period of 4 seconds to its initial setting. The cycle is then repeated. Pulse rate and pulse width are fully adjustable.
|
|
16
|
Timer
|
Adjustable, from 5 to 60 minutes minutes and continue(C), 5 minutes each step.
|
|
17
|
Patient
Compliance Meter
|
This unit can store 60 sets of operation records. Total recorded time is 999 hours.
|
|
18
|
Low Battery Indicator
|
A low battery indicator will show up when the battery is low.
|
|
19
|
Operating Condition
|
Temperature:0°-40°C
Relative Humidity: 30%~75%
Atmosphere Pressure : 700Hpa~1060Hpa
|
|
20
|
Remark
|
There may be up to a +/-10% tolerance of all parameters and +/-20% tolerance of output amplitude & voltage.
|
