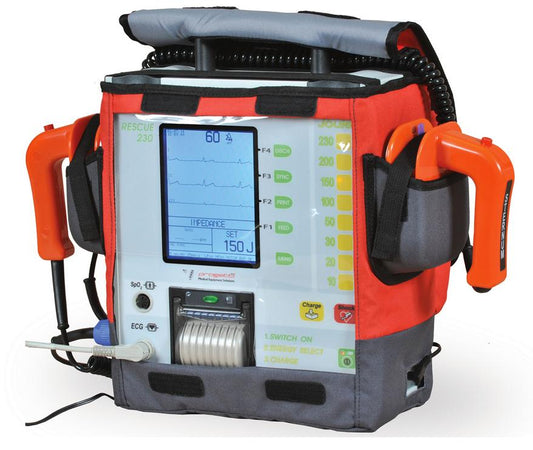

DEFIBRILLATOR - RESCUE 230

FEATURES:

• Its compact shape and its portability with a plain and smooth style make RESCUE 230 a manual defibrillator appreciated all over the world. This defibrillator has been proving its reliability for years, allowing the users always to rely upon its effectiveness. Thanks to the easy application of the 4 wires ECG cable and to its software, easy to manage, this defibrillator becomes the ideal device for those who face daily cardiovascular emergencies.

DESCRIPTION:

• TECHNICAL SPECIFICATIONS:
  • BTE (biphasic truncated exponential) discharge type
  • Energy selection: from 2 to 230 Joule directly from the front panel (2-10 step 1 Joule; 10-230 step 5 Joule)
  • Charge time: 5 sec for 230 Joule with fully charged battery
  • 100 shocks of 230 Joule with fully charged batteries
• DISPLAY:
  • Large (5.7’’) high resolution backlight LCD display (320x240 pixels)
  • ECG through the discharge paddles (1 trace) or through 4 leads patient cable (6 traces): I, II, III, aVR, aVL, aVF, SpO2 trace and values
  • Heart rate indicator
• ECG MONITORING:
  • ECG trace parameters:
  • Velocity 5, 12.5, 25 mm/sec
  • Gain 5, 10, 20 mm/mV
  • HR digital readout on the display from 20 to 300 bpm (± 2%)
  • Alarm: HR max settable 250 bpm, HR min settable 20 bpm
• PRINTER:
  • Integrated thermal printer for ECG traces and events documentation
• POWER SUPPLY:
  • Internal Ni-Cd high capacity batteries with fast charge time
  • AC Adapter charger:100-230 V,±10% 50/60 Hz

OPTIONALS: (Not included)

• AED /Advisory mode
• SpO2
• Complete set of pediatric paddles
• Car-light adapter
• Disposable paddles
• Carrying case
• Pacemaker
• Internal defi paddles
