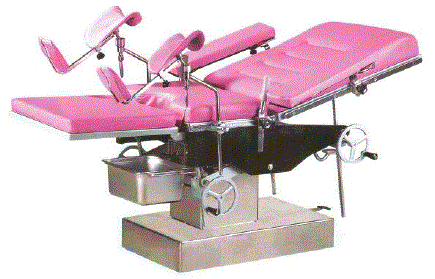

DELIVERY TABLE HYDRAULIC - 3004

DESCRIPTION:

• MODEL 3004 MULTI –PURPUSE OBSTERTIC TABLE.
• This table is designed for women’s parturition and gynaecollgical operation,
• Its is Characterized by easy operation, safely and reliability, use economically and soon.
• It is composed of bed sarfuce, badstend and bed base.
• The Sarfuce includes back section, Seat section, legsection.
• The ascepang and descending movements and the forward and back ward tilt are controlled by the operating hand wheel.
• It is makes the doctor and poticnts feel comfortable.

SPECIFICATIONS:

• Length and width for tabletop: 1800mm x 600mm
• Height adjustment range: (Min ) 660mm X (Max) 920mm
• Dimensions of Sections:
  • Back Section: 600mm x 800mm
  • Seat Section: 600mm x 400mm
  • Legs: 540mm x 500mm
• Max. degree for back rest adjustment: > 60® > 10®
• Max. degree for tabletop forward and backward tilting: (forward) > 8® ( backward ) > 20®
