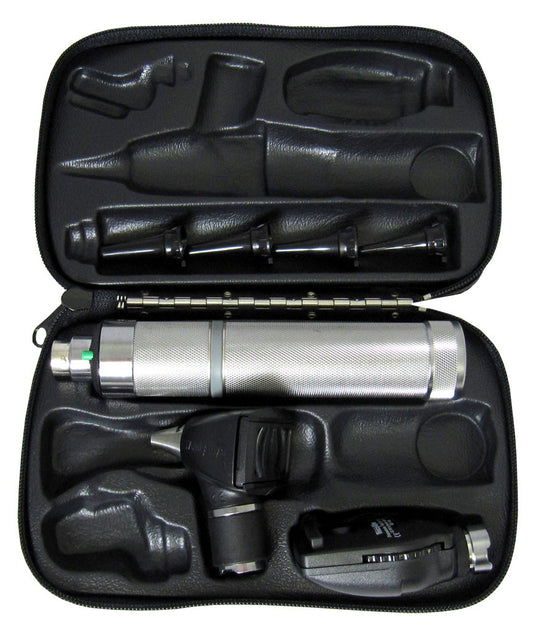

DIAGNOSTIC SET - ELITE 97200 BI

HALOGEN + FIBRE OPTICS

Allows a completely unobstructed view in true tissue colour.

RHEOSTAT CONTROL

Vary the power of illumination with the smooth turn of a dial.

WIDE-ANGLE VIEWING LENS

With easy access for cleaning.

11720 | Coaxial Ophthalmoscope:

• Halogen light for true tissue colour and consistent, long-lasting performance.
• The coaxial optics produce a shadow-free spotlight, easier entry into undilated pupils and a larger field of view compared to standard ophthalmoscopes.
• 6 apertures:
• Micro - allows quick entry into small, undilated pupils.
• Small - provides excellent view of fundus through an undilated pupil.
• Large - general examination of the eye through dilated pupil.
• Fixation - graduated cross-hairs for measuring eccentric fixation or locating lesions.
• Slit - used to determine levels of lesions and tumors.
• Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
• 2 filters can be used in conjunction with any of the above apertures:
• Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
• Polarising filter - virtually eliminates corneal reflection.
• 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
• Rubber brow-rest prevents scratching of eyeglasses.
• Variable illumination strength via the handle rheostat dial.

RHEOSTAT CONTROL

Vary the power of illumination with the smooth turn of a dial.

APERTURE SELECTION DISC

Switch easily between 6 apertures via a disc on the head.

SIX APERTURES

A wide range of practical apertures to select from.

LENS SELECTION DISC

Focus on the fundus, cornea, iris and other ocular structures.

TWO FILTERS

Red-free or polarising filter can be used in tandem with any aperture.

71020-B | C-Cell Battery Powered Handle:

• Smooth, nonabrasive knurled finish ensures a no-slip grip.
• Chrome-plated brass construction for durability and reliable long-life.
• Takes two 'C' size alkaline batteries (included).
• Free laser engraving to the handle end.

EASY ATTACHMENT

Align cutouts with lugs, press and twist 90° to fit. Reverse procedure to remove.

RHEOSTAT CONTROL

Smoothly control the applied power with the easy grip dial.

BATTERY POWER

Powered by standard 'C' size alkaline batteries (included).

05259-M | Rigid Carry Case

• Leather effect exterior .
• Vacuum formed interior to keep instruments in place .
• Protective foam layer for shock absorption.
• Zip fastener.
