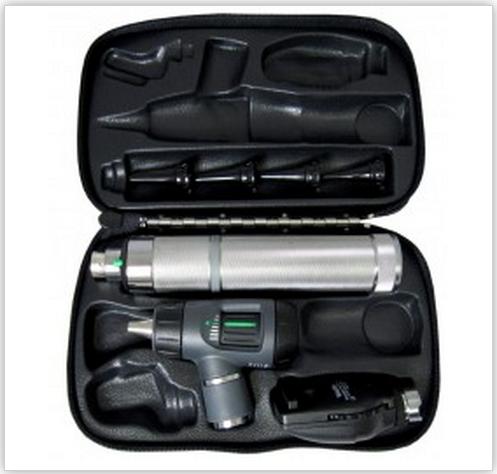

DIAGNOSTIC SET - ELITE 97250 MBI

HALOGEN + FIBRE OPTICS

360° ring of light allows a completely unobstructed view in true tissue colour.

RHEOSTAT CONTROL

Vary the power of illumination with the smooth turn of a dial.

WIDE-ANGLE VIEWING LENS

With twice the field of view of a conventional otoscope.

INSUFFLATION PORT

Attach an insufflation bulb to test the mobility of the tympanic membrane via pneumatic otoscopy.

FOCUS WHEEL

Turn to smoothly focus without the need to move the device.

SPECULA EJECTOR

Twist the Tip Grip to fasten or eject specula.

11720 | Coaxial Ophthalmoscope:

• Halogen light for true tissue colour and consistent, long-lasting performance.
• The coaxial optics produce a shadow-free spotlight, easier entry into undilated pupils and a larger field of view compared to standard ophthalmoscopes.
• 6 apertures:
• Micro - allows quick entry into small, undilated pupils.
• Small - provides excellent view of fundus through an undilated pupil.
• Large - general examination of the eye through dilated pupil.
• Fixation - graduated cross-hairs for measuring eccentric fixation or locating lesions.
• Slit - used to determine levels of lesions and tumors.
• Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
• 2 filters can be used in conjunction with any of the above apertures:
• Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
• Polarising filter - virtually eliminates corneal reflection.
• 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
• Rubber brow-rest prevents scratching of eyeglasses.
• Variable illumination strength via the handle rheostat dial.

RHEOSTAT CONTROL

Vary the power of illumination with the smooth turn of a dial.

APERTURE SELECTION DISC

Switch easily between 6 apertures via a disc on the head.

SIX APERTURES

A wide range of practical apertures to select from.

LENS SELECTION DISC

Focus on the fundus, cornea, iris and other ocular structures.

TWO FILTERS

Red-free or polarising filter can be used in tandem with any aperture.

71020-B | C-Cell Battery Powered Handle:

• Smooth, nonabrasive knurled finish ensures a no-slip grip.
• Chrome-plated brass construction for durability and reliable long-life.
• Takes two 'C' size alkaline batteries (included).

EASY ATTACHMENT

Align cutouts with lugs, press and twist 90° to fit. Reverse procedure to remove.

RHEOSTAT CONTROL

Smoothly control the applied power with the easy grip dial.

BATTERY POWER

Powered by standard 'C' size alkaline batteries (included).

05259-M | Rigid Carry Case

• Leather effect exterior .
• Vacuum formed interior to keep instruments in place .
• Protective foam layer for shock absorption.
• Zip fastener.
