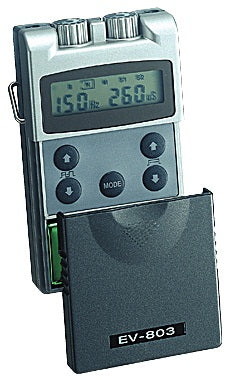

DIGITAL TENS SD - EV-803(C/T)

DESCRIPTION:

• EV-803(C) is a Digital SD TENS with 5 modes: B(Burst), N(Normal), M(Pulse Rate Modulation), S1(Pulse Width Modulation) and S2(Pulse Rate Modulation). Pulse rate, pulse duration and modes are selected by press buttons. A compliance meter allowing the physical therapist to check the accumulated treatment time. A timer of 15, 30 and 60 minutes and a protection cap on the top of unit is available by order.

FEATURES:

• Cannel: Dual, isolated between channels
• Pulse Amplitude: 0-80mA peak to peak into 500 ohm load.
• Pulse Rate: Adjustable, from 1Hz ~ 150 Hz, 1 Hz/step
• Pulse Width: Adjustable, from 30 µs ~ 260 µs, 10 µs/step
• Mode: B, N, M, S1, S2
• Wave Form: Asymmetrical Bi-Phasic Square Pulse
• Voltage: 0-40 V peak into 500 ohm load
• Size: 100(H)X 60(W) X 21(T) mm
• *A timer of 15, 30, 60 minutes is available by order.
