Product Description

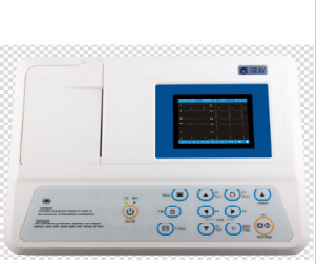

ECG-3301 1ch Product Introduction
Product Photos :
Main Unit Accessories
Features :
Portable delicate design and very easy to operate
Accurate pulse pace identification function and excellent auto-interpretation function
High accuracy digital filter, auto baseline adjustment
12 leads synchronously acquisition and display; Recording mode 1ch, 1ch+
Working modes: Manual / Auto / Analysis
320×240 graphic, 3.5 inch color LCD to display detailed ECG information
Adapt to 110-230V, 50/60Hz power supply
Built-in rechargeable Ni-MH battery supports continuous work for about 3 to 4 hours.
Real-time freeze function
50mm*20m high resolution thermal printing
Language : English, Chinese, French, Italian, Spanish, Russian
300mm*230mm*75mm, 2.8kgs
Technical Specification:
| Lead | Standard 12 leads | Time constant | ≥3.2s |
| Lead acquisition | 12bit/1000Hz (synchronously 12 leads) | Frequency response | 0.05~160Hz(-3db) |
| Work mode | Man / Auto/Analysis | Noise level | <15μVp-p |
| Filter | AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) |
Inter-channel Interference | ≤0.5mm |
| CMMR | ≥120dB (with AC FILTER) | Sensitivity | 2.5,5,10,20, 40, Auto (mm/mV) |
| Input circuit | Floating; Protection circuit against Defibrillator effect |
Recording mode | 1ch,1ch+ Default Man. Mode is 1ch format Default Auto. Mode is 1ch+ format |
| Input Impedance | ≥50MΩ | Paper speed | 6.25,12.5,25,50mm/s(±3%) |
| Input circuit current | ≤0.05μA | Paper | 50mm *20m Roll paper |
| Patient current leakage | <10μA | Communication | RS232/ USB port, LAN ( not available ) |
| Calibrating voltage | 1mV±2% | Power Supply | AC 110-230V(±10%),50/60Hz(±1Hz),40VA DC Built-in rechargeable battery,12V(1500mAh) |
| Voltage tolerance | ≥±500mV | Dimension/Weight | 300mm×230mm×75mm / 2.8Kg |
Package:
1 unit / small carton : 40cm*34cm*22cm, net weight 2.8kgs, gross weight 5kgs
4 units / big carton : 70cm*41cm*46cm, net weight 12kgs, gross weight 22kgs
