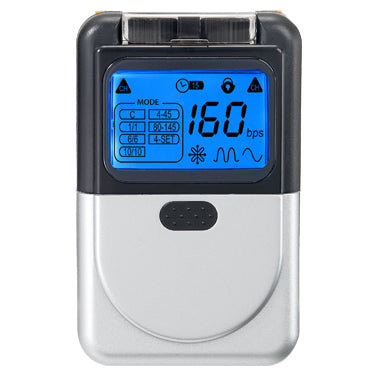

INTERFERENTIAL STIMULATOR With True Sine Wave IF908

MECHANISM

TECHICAL DESCRIPTION

Channel

Dual, isolated between channels

Dimensions

107x62x27mm

Weight

Approximately 150 grams, battery included

Amplitude

Adjustable 0-60mA peak into 500 ohm load each channel,constant current

Carrier Frequency

4000Hz, Fixed (CH1)

Modulating Frequency

4-160bps, Adjustable (CH2)

IF Frequency Modes

9 modes, 1 constant mode, 5 frequency shift modes, 3 auto sweep Modes

Constant Mode

4-160bps, Adjustable

Auto Sweep

4-45 bps
80-145 bps
4-SET bps

Frequency Shift

Five modes,
1/1 abrupt shift
6/6 abrupt shift
6/6 ramped
10/10 abrupt shift
10/10 ramped
bps adjustable

Sweep Time

15 seconds

Frequency Shift Percent

Frequency shifts from 30% below the set frequency to 60% above and then return to 30% below the set frequency.

Output Configuration

Quad polar (4 electrodes)

Wave form

Symmetrical Balanced Sine Wave

Interference
Pulse Frequency

4-160 bps, Adjustable, 4 bps/step

Pulse Duration

125 µs maximum

Patient Compliance Meter

Display total treatment time

Lock

Prevents the patient from accidentally changing any of the set parameters

Timer

15, 30 minute selectable

LCD

Displays mode, bps rate, abrupt/ramp, timer, and channels

Max charge per Pulse

15 Micro-coulombs Maximum

Low Battery

A low battery indicator will show when the battery is low.

Power Source

9 Volt DC adapter, 500mA or 9 volt alkaline battery (not recommend due its short life)

Tolerance

There may be +/-10% tolerance of settings and 20% tolerance of output.
