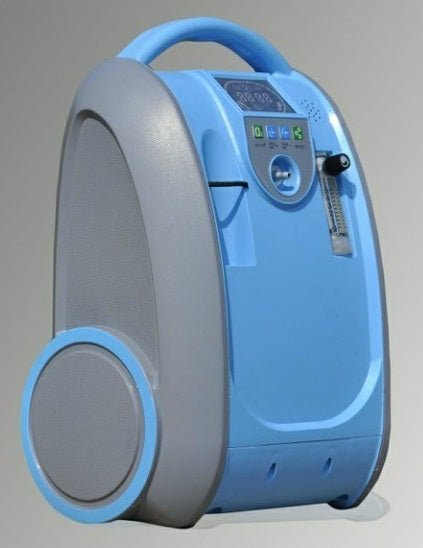

OXYGEN CONCENTRATOR - LG-101

Continuous flow setting

0 - 5 LPM = Litter Per Minute

Oxygen Concentrations

93% +/- 3% at 1 LPM

60% +/- 3% at 3 LPM

40% +/- 3% at 5 LPM

Outlet Pressure

8.5 PSI

Sound Level

≤ 43 dB (nominal) at any setting

Physical Characteristics:

Size

10.2 in x 7.7 in x 15.2 in (26cm x 19.5cm x 38.7cm)

Weight

12 lbs (5.4 kg) without battery

User interface

Push Buttons, bask-lit liquid crystal display (LCD)

Filtration

Air inlet filter, bacteria filter

Operating Conditions:

Operational Temperature

41° to 104°F (5° to 40°C)

Relative Humidity

15 to 95%

Altitude

Up to 12,000 ft (3657 m)

Storage Conditions:

Temperature

-4° to 140°F (-20° to 60°C) unit only

Relative Humidity

Up to 95%, non condensing

AC Power:

Input

100 to 240 VAC, 50/60 Hz, 1.8 A max

Output

14.8 VDC, 8 A Max

Power Consumption

90W

DC Power:

Input

Input 11. To 16.8 VDC 20 A Max

Output

14.8 VDC, 8 A Max

Audible Alarm:

Sound Level

55 dB (nominal) at 39 in (1 m)□

Alarm Type

No Power, No flow, Low Battery, Depleted battery,

Wrong Battery, System technical fault.

Battery:

Chemistry

Lithium Ion 14.8 VDC (nominal)

Dimensions

6.1 in x 3.4 in x 2 in (15.5cm x 8.5cm x 5cm)

Weight

1.5lbs (0.7 kg)

Charge Time

Approximately 4 to 5 hours

Battery Duration:

59-61 Minutes at0-5 LPM continuous flow setting.
