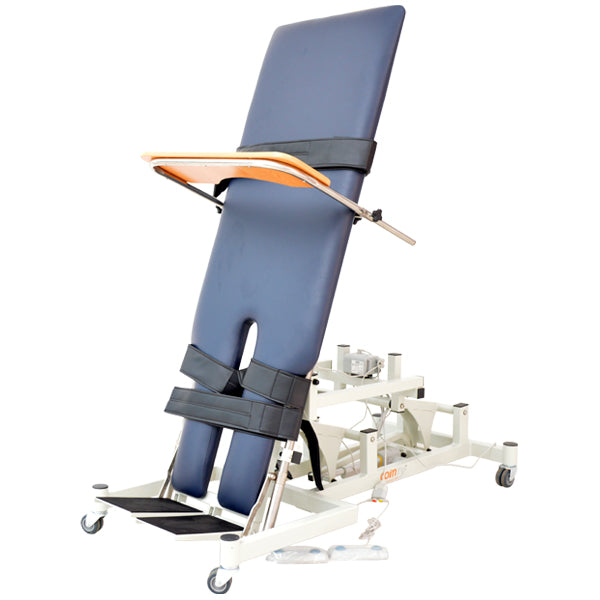

TILT TABLE ELECTRIC TAIWAN

SPECIFICATION:

• Two electric motors, standard supports "Timotion" brands for Hi-Lo & Tiling.
• Tilting provides a actuators of 12000N push, angle adjustable from -2° to +90°.
• Hi-Lo provides a actuators of 8000N push, height adjustable from +48 to +95.5°.
• Hi-Lo and tilting by single hand switches.
• This updating table provides a adjustable foot rest from -10° to +30°, comfortable for different situation.
• Accessories: adjustable belts and active table.
• Able to lift up to 175kg working weight from its lowest height.
• Retractable castors 75mm for excellent mobility and safety.
• Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.
• Table goes horizontal for people recovery in emergency situations.
• Certificates: CE, FDA, ISO9001-2008, ISO13485-2007
• DIMENSION:
  • Upholstery Length: 189cm
  • Upholstery Width:64cm
  • Adjustable Height:48cm–95.5cm
  • Foam Thickness:4cm
  • Foam Density:36g/m2
• Packing: 205 x 82 x 57cm(Heavy carton)
• N.W./G.W.: 85/98kgs
• 20“GP/40"GP: 28/56pcs
